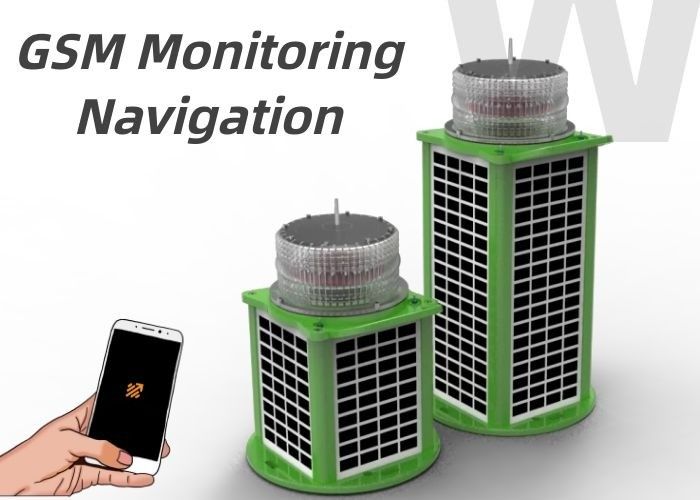

GSM Monitoring Solar Buoy Lights 10nm Visibility Integrated Construction

GSM Monitoring Solar Led Buoy Navigation Lanterns

The WelandSignal_TM GSM Monitoring system is the most cost effective module to allow convenient monitoring of the lanterns using a SIM card, any network operator can be used providing they have GSM coverage.

It reports to designed cell phones data including the voltage, current, working mode and location. Unauthorized access to the lanterns data cannot occur as only the designated cell phone numbers programmed into the light will respond to a remote SMS text message. The GSM System is internally housed within the lantern and requires no external aerials and retaining the waterproof level of the lantern.

Wireless telemetry remote control communication module in accordance with the China Maritime Administration in 2005 “sea beacon telemetry remote control system technical specifications”, JT/T 788-2010 “beacon telemetry remote control system technical specifications” and other relevant technical specifications for compatibility design.

Available Data from Remote Lantern

• Battery voltage
• Solar module charging current
• Lantern current draw
• Lantern position – Latitude and Longitude
• Day/night on status
• Current operation mode
• Current flash code setting

Key Features

Example: Read the current information of the 0001 lamp, then send GPS to the 0001 lamp on the built-in mobile phone card. The format for receiving feedback text messages is:

Recent Projects

Our unique.portable designs ensure navigation lanterns can withstand harsh conditions at sea. All components are housed in rugged, high grade enclosure to ensure long-term performance with no maintenance. Since 2010, WelandSignal^TM has finished 32,000 installations over 80 countries.
