Double Tower Obstruction Light Medium Intensity Tower Aircraft Warning Lights

Double Tower Obstruction Light Medium Intensity Tower Aircraft Warning Lights

Double Tower Obstruction Light

Medium Intensity Tower Aircraft Warning Lights

Medium Intensity aviation lamp for tower

Place of Origin:

SHAANXI, CHINA

Brand Name:

WelandSignal

Certification:

ROHS,CE

Model Number:

OM2K-D

Contact Us
Request A Quote
Product Details
Light Source:
Super Bright Medium Intensity LED
Color:
Red, Green, Yellow, Blue, White
Voltage:
110-220VAC,12VDC,4VDC,48VDC
Material:
Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Working Mode:
Service+Standby Or Service+Service
Peak Intensity:
2500cd
Waterproof:
IP67
Mounting:
4pcs Bolts
Warranty:
5 Years
OEM:
Color, Flashing Frequency, Logo, Carton Design
Standard:
FAA,ICAO
Application:
Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
Highlight:

Double Tower Obstruction Light

,

Medium Intensity Tower Aircraft Warning Lights

,

Medium Intensity aviation lamp for tower

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
USD$229-239
Packaging Details
Each has one small carton and 6pcs in one big carton
Delivery Time
3-7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
20000pcs/month
Product Description

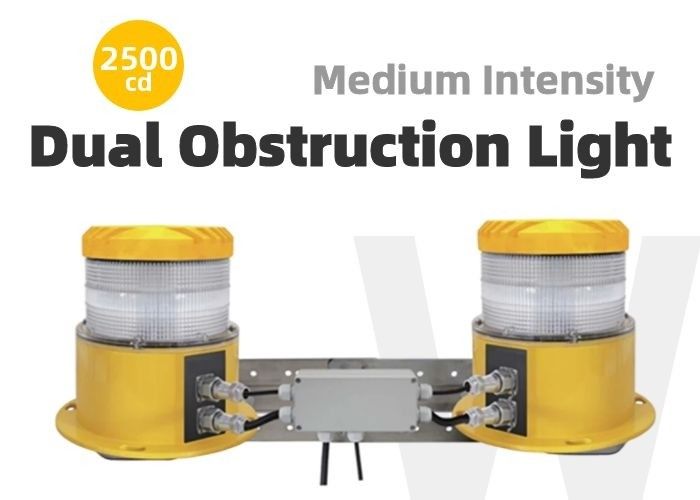

Dual Medium Intensity LED Tower Obstruction Light is a new generation of medium intensity OB lights. Its compact size and light weight make installation easy and simple.

The optics are partly based on a Fresnel lens, an anamorphic convex lens that concentrates light to a small, specific angle to meet ICAO requirements. Fresnel lenses are often used in the design of obstruction lights.

The light is IP67 rated, ensuring the light is well sealed to withstand harsh environments including the ocean. If used in conjunction with a control box, synchronization and more can be achieved. GPS or GPRS functionality can also be used if desired.

The lamp has a plug-type connection for easy installation. When the lamp has a built-in alarm relay, an extra plug will be added to the base (the alarm function requires a 2-core shielded wire). The junction box mounted on the double bracket has a PCB, in "service + standby" mode, when the service light fails, it can automatically switch to the standby light.



SPECIFICATIONS





Dual Medium Intensity LED Tower Obstruction Light



Mechanical Specifications Mechanical Specifications



Peak Intensity



2500d

Structure

Integrated Design



Working Model



Flahing/Steady On Lens Material Polycarbonate



Protect Level



IP67  Input Voltage 110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC



LED



Super-bright medium intensty Leds  Function Optional Synchronization



Temperature



-45℃~70℃ Mounting 4 bolts M6



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically OEM Service

Color: Red, Green, Yellow, Blue, White

Flashing frequency



Double Tower Obstruction Light Medium Intensity Tower Aircraft Warning Lights 0

Double Tower Obstruction Light Medium Intensity Tower Aircraft Warning Lights 1

For example,OM2KDA220ST means OM2K 2500cd dual obstruction lights with one service and the other standby, Voltage is AC220V.



KEY FEATURES



ENERGY SAVING

  • We update main components every year with the rapid development of solar panel, batteries and LEDs.

  • LEDs is supplied by OSRAM, patent design for medium intensity obstruction lighting.

  • We always keep ourselves up-to-date.



UP-TO-DATE MATERIALS AND TECHNOLOGY

  • The lens of 110V/220V Low Intensity Dual LED Obstruction Light is designed with wonderful heat dissipation, with much low luminance decrease for longer life span.

  • Regulation automatically turns on at dusk and off at dawn.

  • 5 years warranty




SIZE (mm)

Double Tower Obstruction Light Medium Intensity Tower Aircraft Warning Lights 2

Bracket

Double Tower Obstruction Light Medium Intensity Tower Aircraft Warning Lights 3
