| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS,CE |
| Model Number: | OL32 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$49-69 |
| Packaging Details: | Each has one small carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Light Source: | Super Bright Medium Intensity LED | Color: | Red, Green, Yellow, Blue, White |
|---|---|---|---|
| Voltage: | 110-220VAC,12VDC,4VDC,48VDC | Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection |
| Working Mode: | Flashing, Steady On | Peak Intensity: | 10cd,32.5cd,300cd |
| Waterproof: | IP67 | Mounting: | 4pcs Bolts |
| Warranty: | 5 Years | OEM: | Color, Flashing Frequency, Logo, Carton Design |
| Standard: | FAA,ICAO | Application: | Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area |
| High Light: | RED Flashing Tower Obstruction Light,Low Intensity LED Obstruction Light,Low Intensity tower aviation light |
||

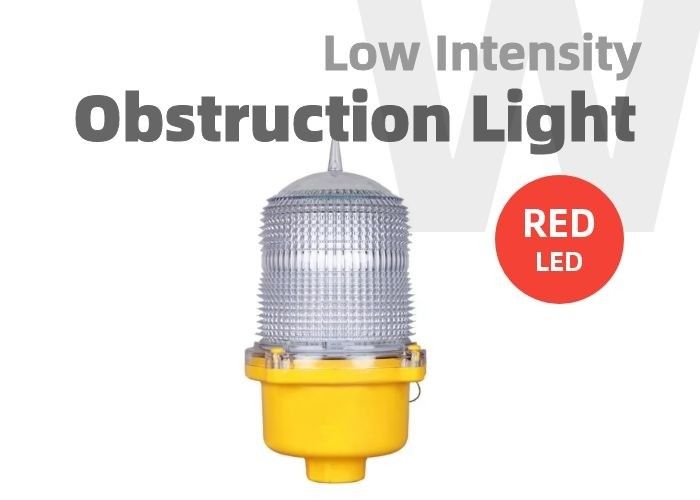

110V/220V Low Intensity RED Flashing LED Obstruction Light is designed to survive and perform in airway fixed obstacle marking applications with a waterproof, vibration proof and corrosion resistance casing. It comply with ICAO regulation, low intensity, type A/type B. Working mode is steady burning.
SPECIFICATIONS
|
110V/220V Low Intensity RED Flashing LED Obstruction Light
|
|||
| Mechanical Specifications | Mechanical Specifications | ||
|
Peak Intensity
|
10cd,32.5cd,300cd |
Structure |
Integrated Design |
|
Working Model
|
Flahing/Steady On | Lens Material | Polycarbonate |
|
Protect Level
|
IP67 | Input Voltage | 110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC |
|
LED
|
Super-bright medium intensty Leds | Function Optional | Synchronization |
|
Temperature
|
-45℃~70℃ | Mounting | 4 bolts M6 |
|
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | OEM Service |
Color: Red, Green, Yellow, Blue, White Flashing frequency |
KEY FEATURES
ENERGY SAVING
We update main components every year with the rapid development of solar panel, batteries and LEDs.
LEDs is supplied by OSRAM, patent design for medium intensity obstruction lighting.
We always keep ourselves up-to-date.
UP-TO-DATE MATERIALS AND TECHNOLOGY
The lens of 110V/220V Low Intensity Dual LED Obstruction Light is designed with wonderful heat dissipation, with much low luminance decrease for longer life span.
Regulation automatically turns on at dusk and off at dawn.
5 years warranty
SIZE (mm)
Dual Lighting Model
OL10/32 110V/220V Low Intensity Dual LED Obstruction Light is designed to survive and perform in airway fixed obstacle marking applications with a waterproof, vibration proof and corrosion resistance casing. It comply with ICAO regulation, low intensity, type A/type B. Working mode is steady burning.
OL-D10/32 Series Double Light Double light is integrated by 2 single lights. For making sure there is always a light working at the top of the tower. Two optional working patterns can meet different area’s customers.
“Service+Standby”: Only “service light” is working normally. It will auto-transfer to “standby light” in case of ”service light” failure
“Service+Service”: Two single lights work simultaneously. Either failure will not affect the other normal working.
Installation
