| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS, CE |
| Model Number: | OM2K |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$159~179 |
| Packaging Details: | Each has one small carton and 6pcs in one big carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Light Source: | Super Bright LED | Color: | Red, Green, Yellow, Blue, White |
|---|---|---|---|
| Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection | Working Mode: | Flashing, Steady On |
| Peak Intensity: | 2500cd | Waterproof: | IP68 |
| Mounting: | 4pcs Bolts | Warranty: | 3 Years |
| OEM: | Color, Flashing Frequency, Logo, Carton Design | Standard: | FAA,ICAO |
| Application: | Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area | ||
| High Light: | Synchronization Tower Obstruction Light,Tower Obstruction Light DC24V 48V,48V solar powered tower lights |
||

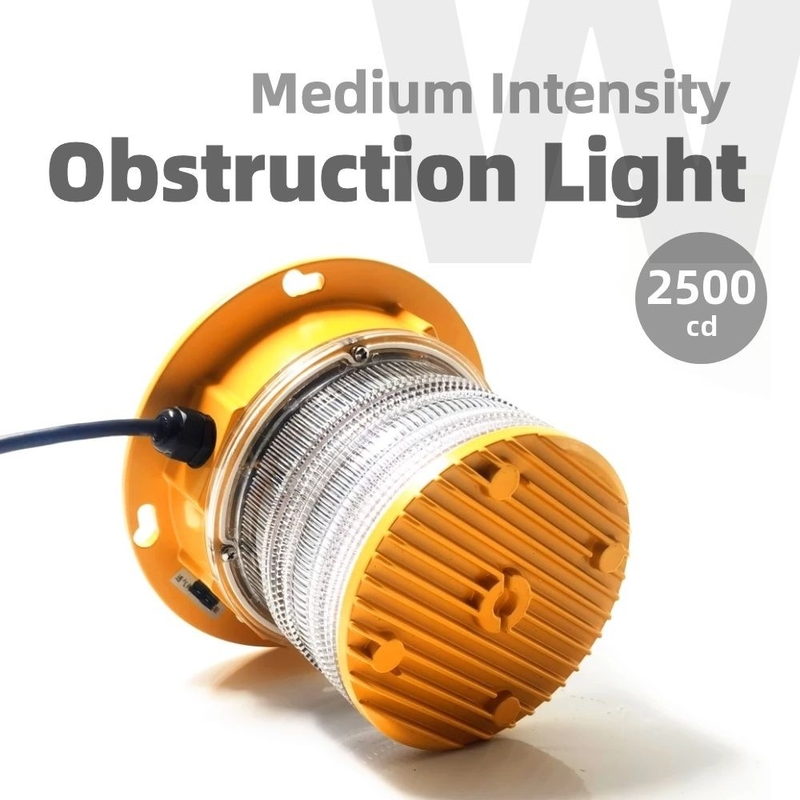

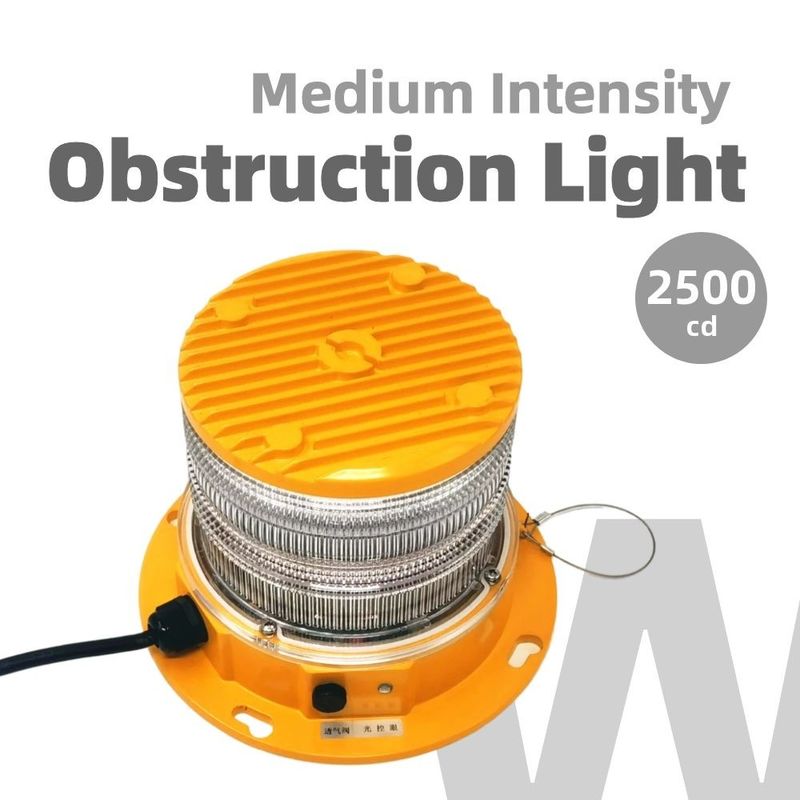

DC24V/48V Medium Intensity LED Aviation Obstruction Tower Light is a new generation medium intensity OB light. It comes with compact-size and light-weight, which makes installation job nice & easy.
The optical part is based on Fresnel lens, a transformed convex lens which can concentrate light to a small specific angel to meet with ICAO requirements. Fresnel lens is often used to design obstruction light.
The light’s ingress protection level is IP67, assures the light is well sealed to stand harsh environment include the ocean. If work with control box, more functions like synchronization could be realized. GPS or GPRS functions also available if needed.
SPECIFICATIONS
|
DC24V/48V Medium Intensity LED Aviation Obstruction Tower Light
|
|||
| Mechanical Specifications | Mechanical Specifications | ||
|
Peak Intensity
|
2500cd | Structure |
Excellent heat dissipation
|
|
Working Model
|
Flahing/Steady On | Lens Material | Polycarbonate |
|
Protect Level
|
IP68 | Voltage | 110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC |
|
Energy Manage System (EMS)
|
Intelligent Microprocessor | Function Optional | Synchronization |
|
Temperature
|
-45℃~70℃ | Installation | M6*4pcs bolts |
|
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | ||
KEY FEATURES
UP-TO-DATE MATERIALS AND TECHNOLOGY
RELIABLE
SIZE (mm)
INSTALLATIONS
STANDARS
