OEM Ol800 Solar Obstruction Light Salt Dust Proof Synchronization

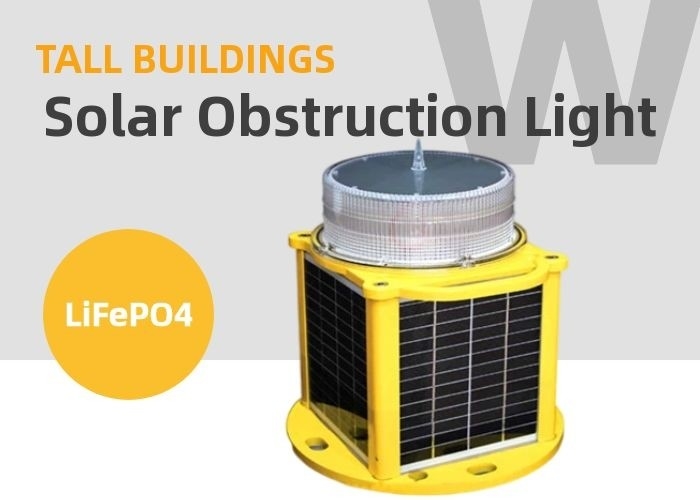

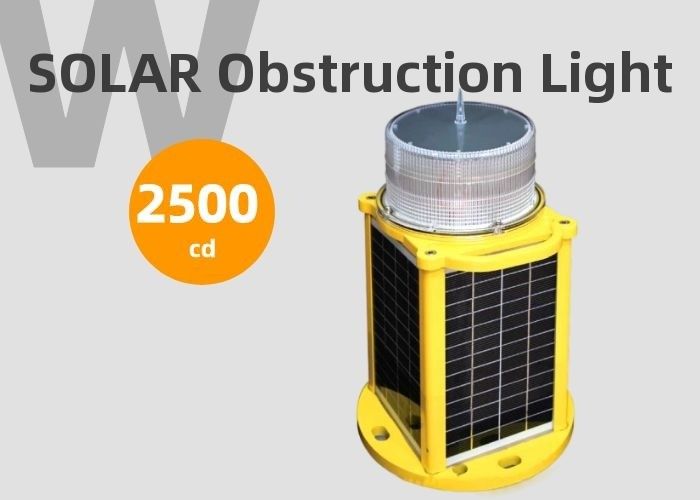

Ol800 Medium Intensity Solar Obstruction Light is a medium intensity red LED solar-powered obstruction light that features a diverse range of applications including marking of wind turbines, bridges, towers and other structures that present a hazard to aviation. The wide asymmetrical vertical profile meets or exceeds the requirements of the FAA L-864,865 and ICAO obstacle lights.

SPECIFICATIONS

NOTE:

• Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
• Charge every 3 months when storing.


KEY FEATURES

Intuitive Setup & Programming
• Top-mounted LED display with simple “tap to activate” functionality
• Easily check light settings without external controller
• Built-in calendar function allows for automatic de-activation during off-season months
• Programmable with optional IR remote
Scalable, Cost-effective Design
• Customizable for best value-for-performance
• Multiple battery pack options
Intelligent Energy Management
• Best-in-class, high-efficiency solar panels
• Maximum Power Point Tracking (MPPT)
• Patented Energy Management System (EMS)
• Ensures maximum battery life and light performance in even the harshest of environments
Durable, Low Maintenance
• Compact, stand-alone, maintenance-free unit
• Integrated solar panels, battery, electronics and LED light source
• Replaceable battery extends life beyond ten years

Trusted
• Thousands of installations worldwide
• Welandsignal' solar LED lights operate year-round at permanent and temporary installations

COMPLIANCE

• FAA L-864 per AC 150/5345-43J
• ICAO Annex 14 6th edition, medium intensity type B
• DGAC L-864



SIZE (mm)




STANDARS

GPS Sync Flashing

GPS Sync Flashing Ol800 Solar Obstruction Light has been widely used in aviation obstruction lights. The method can be divided into the application of a centralized control box or the use of the son-mother lamp to realize synchronous control. We found that when the main lamp failed, all other sub lamps could not work normally. Therefore, WelandSignalTM implanted GPS timing module inside the aviation obstruction lights, and the driver accepts the GPS satellite clock timing signal. Even when the next phase of the project is installed, the product will still achieve synchronous flashing with the previous product, which has a strong security vision. The waterproof grade IP67 or above of the aviation lights synchronized by GPS can adapt to the harsh environment of sea water without manual maintenance. It is also the first domestic manufacturer to adopt GPS to achieve synchronous flashing.
