L810 Blinking Aircraft Obstruction Warning Lights Shock Resistant

This L810 GPS Synchronized Blinking Low Intensity Led Aircraft Warning Lights put LED technology in a traditional L-810 package, meeting or exceeding FAA & ICAO standards. Multiple voltages are available, as is Class I, Div 2. Blue, green, amber, or white LEDs are also available. These rugged fixtures are weather and corrosion resistant. L-810 obstruction lights come with a 5-year warranty.

KEY FEATURES

• Available as a single or dual unit
• Available in 12VDC, 24VDC, 48VDC, 120VAC,
• and 220VAC versions (50 or 60HZ)
• Earth grounding provisions provided
• Unique optically designed lens to enhance LED
• operation and provide 360o visibility
• State-of-the-art high-flux LED technology
• Lasts years longer than an incandescent
• Weather/corrosion resistant lamp assembly and housing
• Self-contained wiring compartment eliminates additional boxes
• Threaded 1” and 3/4” bottom hub for mounting
• Can be operated steady or flashed (controller not supplied)
• 5 year warranty
• Resistant to shock and vibration

SPECIFICATIONS

SIZE (mm)

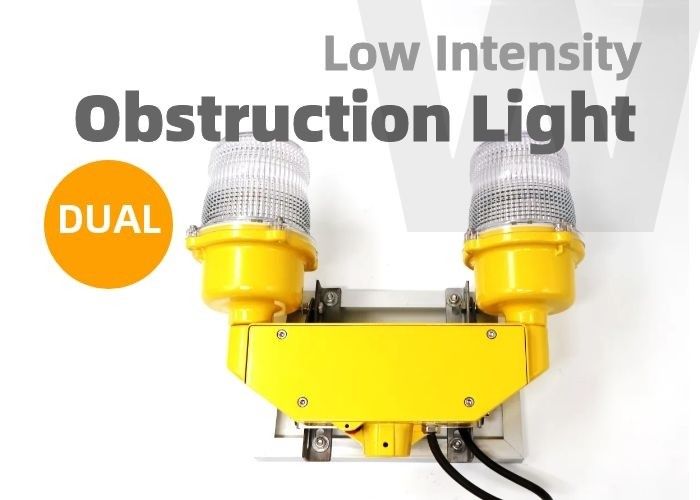

Dual Lighting Model

OL10/32 110V/220V Low Intensity Dual LED Obstruction Light is designed to survive and perform in airway fixed obstacle marking applications with a waterproof, vibration proof and corrosion resistance casing. It comply with ICAO regulation, low intensity, type A/type B. Working mode is steady burning.

OL-D10/32 Series Double Light Double light is integrated by 2 single lights. For making sure there is always a light working at the top of the tower. Two optional working patterns can meet different area’s customers.

“Service+Standby”: Only “service light” is working normally. It will auto-transfer to “standby light” in case of ”service light” failure
“Service+Service”: Two single lights work simultaneously. Either failure will not affect the other normal working.

Installation
