Chimney IP68 LED Obstruction Light GPS Synchronization Anti UV

Chimney IP68 LED Obstruction Light GPS Synchronization Anti UV

IP68 LED Obstruction Light

GPS Synchronization LED Obstruction Light

Anti UV aircraft warning lamp

Place of Origin:

SHAANXI, CHINA

Brand Name:

WelandSignal

Certification:

ROHS, CE

Model Number:

AFS2500

Contact Us
Request A Quote
Product Details
Light Source:
Super Bright LED
Color:
Red, Green, Yellow, Blue, White
Material:
Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Function:
GPS Synchronization Flashing
Working Mode:
Flashing
Peak Intensity:
2500cd
Waterproof:
IP68
Solar Panel:
7W*4pcsmono
Battery:
LifePO4 Lithium Battery 12.8V4AH
Mounting:
4pcs Bolts
Warranty:
3 Years
Standard:
FAA, ICAO
Application:
Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
Highlight:

IP68 LED Obstruction Light

,

GPS Synchronization LED Obstruction Light

,

Anti UV aircraft warning lamp

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
USD$249-269
Packaging Details
Each has one small carton and 6pcs in one big carton
Delivery Time
3-7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
20000pcs/month
Product Description

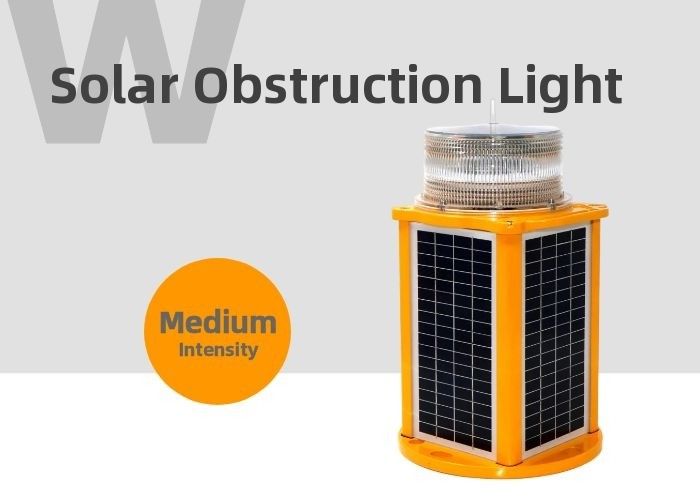

Medium Intensity GPS Synchronization Obstruction Red Warning Light


Synchronized flashing of navigation lights has been widely used in aviation obstruction lights. The method can be divided into the application of a centralized control box or the use of the son-mother lamp to realize synchronous control. We found that when the main lamp failed, all other sub lamps could not work normally. Therefore, WelandSignalTM implanted GPS timing module inside the aviation obstruction lights, and the driver accepts the GPS satellite clock timing signal. Even when the next phase of the project is installed, the product will still achieve synchronous flashing with the previous product, which has a strong security vision. The waterproof grade IP67 or above of the aviation lights synchronized by GPS can adapt to the harsh environment of sea water without manual maintenance. It is also the first domestic manufacturer to adopt GPS to achieve synchronous flashing.



SPECIFICATIONS





FAA L-865/866 Medium Intensity Obstruction Red Warning Light For Tall Buildings



Mechanical Specifications Mechanical Specifications



Peak Intensity



2500cd Structure

Solar Integrated Design

Bird deterrent conjoined with lens for not easy to break



Working Model



Flahing/Steady On Lens Material Polycarbonate



Protect Level



IP68 Solar Panel 7W *4pcs mono



Energy Manage System (EMS)



Intelligent Microprocessor Storage Battery 12.8V20AH LiFePO4 battery



Temperature



-45℃~70℃ Function Optional Synchronization



Continuous Working Hours

250hours Mounting 4 bolts M6 for Mounting



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically OEM Service

Color: Red, Green, Yellow, Blue, White

Flashing frequency

Chimney IP68 LED Obstruction Light GPS Synchronization Anti UV 0

NOTE:

  • Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
  • Charge every 3 months when storing.



KEY FEATURES

  • No limitation on distance or objects between lights
  • No quality limitation
  • Internal GPS synchronization modules with no enteral components or wires required.
  • Each lantern operates independently
  • GPS receiver is housed with the lantern and no additional power suppliers, aerials or control systems are required.
  • Lanterns set to the same flash pattern will come into synchronization.



Chimney IP68 LED Obstruction Light GPS Synchronization Anti UV 1



NOTE:

  • Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
  • Charge every 3 months when storing.





SIZE (mm)



Chimney IP68 LED Obstruction Light GPS Synchronization Anti UV 2



PACKAGE

Chimney IP68 LED Obstruction Light GPS Synchronization Anti UV 3
