| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS, CE |
| Model Number: | NFS1500 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$299 |
| Packaging Details: | Each has one small carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Light Source: | Super Bright LED | Color: | Red, Yellow ,green ,blue, White |
|---|---|---|---|
| Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection | Design Idea: | Integrated Construction Bird Deterrent Conjoined With Lens For Not Easy To Break |
| Visibility: | 10nm | Waterproof: | IP68 |
| Solar Panel: | 7W * 4pcs Mono | Battery: | 12.8V10AH LiFePO4 Battery |
| Mounting: | 4pcs Bolts | Warranty: | 3 Years |
| Standard: | IALA 256 Flashing Pattens | Application: | Vessel Navigation Light, Boat Navigation Lantern, Masthead Light, Stern Light, Side Light, All-round Light, 6nm Solar Boat Navigation Light |
| High Light: | Solar Powered Navigation Buoy Lights,10nm Navigation Buoy Lights,10nm Solar Powered Navigation Light |
||

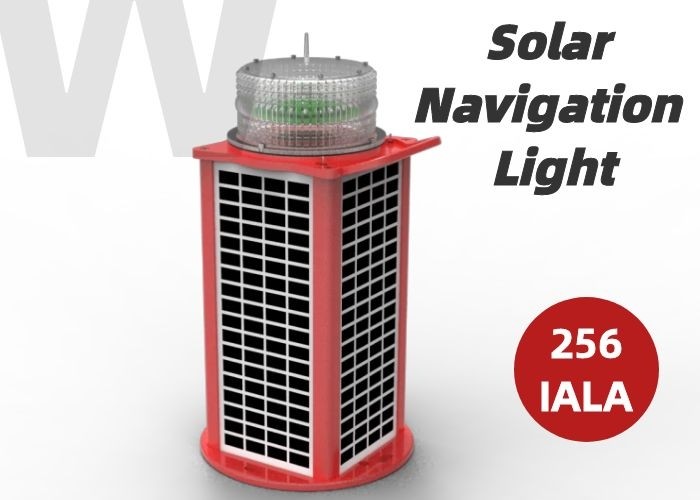

The NFS1500's 10nm Battery Solar Powerd Led Navigation Light consists of three parts:lamp, battery box and solar panel. To meet the harsh environment of marine,which requires lanterns should be 100% waterproof, shock resistence and anti-salty, we design it in a completely all-in-one type. By using 12.8V10Ah LifePO4 battery inside, the lantern now provide with the longest life for marine navigation with maintenance free, For its wonderful performance, it is the pupular type for buoy. In addition, we provide wireless platform with Beidou or GPS for mornitoring without testing in site. It can provide 256 flashing patterns in accordance with IALA, Morse code, SOS code and custom code. These patterns are selected by touch switches and 8 indicators. Can be equipped with GPS if desired.
SPECIFICATIONS
|
10nm Battery Solar Powerd Led Navigation Light
|
|||
| Mechanical Specifications | Electrical Specifications | ||
|
Peak Intensity
|
2500cd with 10nm visibility, adjustable |
Structure |
Solar Integrated Design Bird deterrent conjoined with lens for not easy to break |
|
Working Model
|
Flashing | Lens Material | Polycarbonate |
|
Protect Level
|
IP68 | Solar Panel7 | W * 4pcs mono |
|
Energy Manage System (EMS)
|
Intelligent Microprocessor | Storage Battery | 12.8V10AH LiFePO4 battery |
|
Temperature
|
-45℃~70℃ | Function Optional | Location, Wireless controller and mornitoring |
|
Continuous Working Hours |
250hours | Mounting | 4 bolts M6 for Mounting |
|
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | Standard |
256IALA flashing patterns |
NOTE:
KEY FEATURES
ENERGY SAVING
The navigation lights can operate with solar panels and batteries in order to offer low power consumption.
Will charge under nearly all weather conditions and up to 200 hours of operating capacity.
Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.
UP-TO-DATE MATERIALS AND TECHNOLOGY
RELIABLE
SIZE (mm)
Recent Projects
Our unique.portable designs ensure navigation lanterns can withstand harsh conditions at sea. All components are housed in rugged, high grade enclosure to ensure long-term performance with no maintenance. Since 2010, WelandSignalTM has finished 32,000 installations over 80 countries.
