| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS, CE |
| Model Number: | OM2K |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$159~179 |
| Packaging Details: | Each has one small carton and 6pcs in one big carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Light Source: | Super Bright LED | Color: | Red, Green, Yellow, Blue, White |
|---|---|---|---|
| Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection | Voltage: | 110-220VAC,12VDC,4VDC,48VDC |
| Working Mode: | Flashing, Steady On | Peak Intensity: | 2500cd Flashing In Red |
| Waterproof: | IP68 | Mounting: | 4pcs Bolts |
| Warranty: | 5 Years | OEM: | Color, Flashing Frequency, Logo, Carton Design |
| Standard: | FAA,ICAO Aviation Obstruction Lighting Rules | Application: | Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area |
| High Light: | OM2K Solar Tower Obstruction Light,Tower Warning Solar Aviation Lamp,OM2K solar aircraft warning light |
||

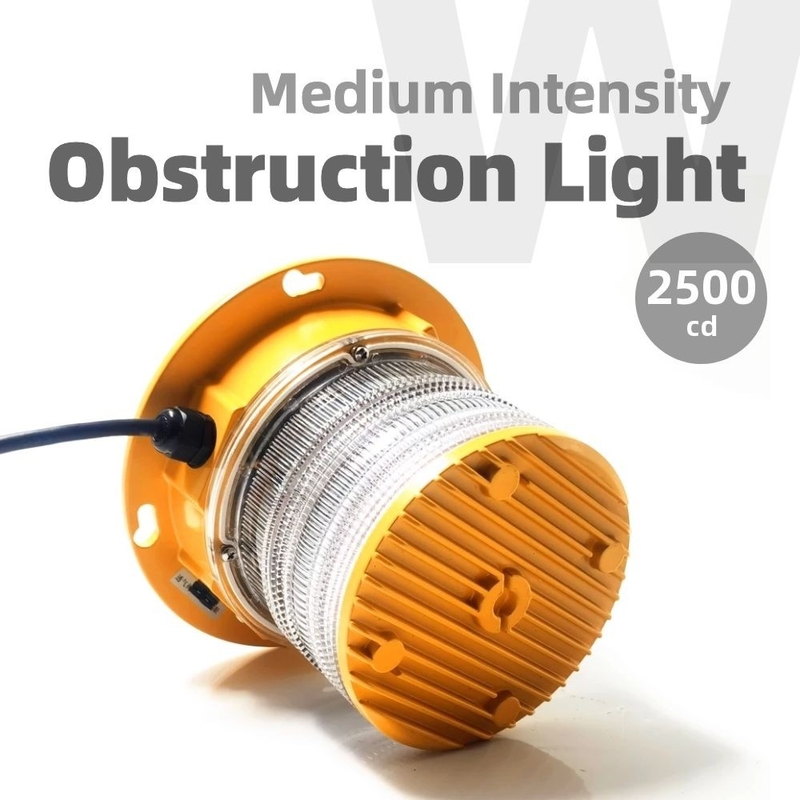

OM2K Medium Intensity Solar Obstruction Light for Tower Warning is a new generation of medium intensity OB lights. Its compact size and light weight make installation easy and simple.
The optics are partly based on a Fresnel lens, an anamorphic convex lens that concentrates light to a small, specific angle to meet ICAO requirements. Fresnel lenses are often used in the design of obstruction lights.
The light is IP67 rated, ensuring the light is well sealed to withstand harsh environments including the ocean. If used in conjunction with a control box, synchronization and more can be achieved. GPS or GPRS functionality can also be used if desired.
SPECIFICATIONS
|
OM2K Medium Intensity Solar Obstruction Light for Tower Warning
|
|||
| Mechanical Specifications | Mechanical Specifications | ||
|
Peak Intensity
|
2500cd |
Structure |
Excellent heat dissipation
|
|
Working Model
|
Flashing/Steady On | Lens Material | Polycarbonate |
|
Protect Level
|
IP68 | Voltage | 110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC |
|
Energy Manage System (EMS)
|
Intelligent Microprocessor | Function Optional | Synchronization |
|
Temperature
|
-45℃~70℃ | Installation | M6*4pcs bolts |
|
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | Warranty | 5 years |
KEY FEATURES
UP-TO-DATE MATERIALS AND TECHNOLOGY
RELIABLE
SIZE (mm)
INSTALLATIONS
Package Include
