Place of Origin: | SHAANXI, CHINA |
Brand Name: | WelandSignal |
Certification: | ROHS, CE |
Model Number: | CXHX-2-5 |
Minimum Order Quantity: | 1pc |
---|---|
Price: | USD$219~239 |
Packaging Details: | Each has one small carton |
Delivery Time: | 3-7 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 20000pcs/month |
Light Source: | Super Bright LED | Color: | 112.5°Red + 112.5°Green + 135°White=360° |
---|---|---|---|
Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection | Working Mode: | Steady On |
Visibility: | 6nm | Waterproof: | IP68 |
Solar Panel: | 4W * 4pcs Mono | Battery: | 12.8V4AH LiFePO4 Battery |
Mounting: | 4pcs Bolts | Warranty: | 3 Years |
Standard: | UL 1104 & COLREG-72 | Application: | Vessel Navigation Light, Boat Navigation Lantern, Masthead Light, Stern Light, Side Light, All-round Light, 6nm Solar Boat Navigation Light |
High Light: | Port Starboard LED Boat Navigation Lights,Boat Navigation Lights Solar Powered,IP68 sailing vessel navigation lights |

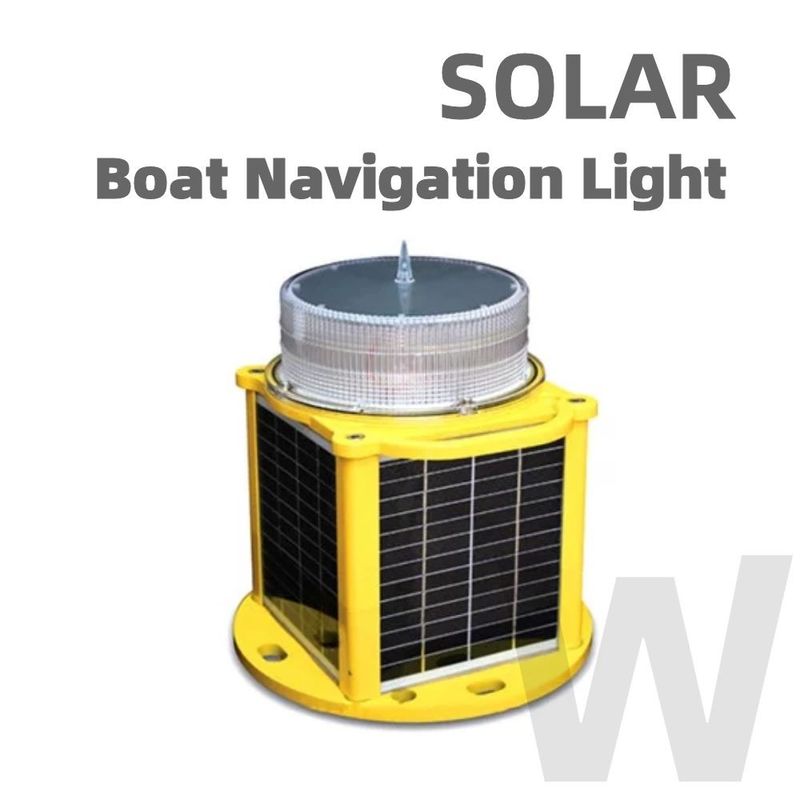

Port And Starboard Solar Led Ship Navigation Lights At Night also provide information about size, activity, and driving direction. By understanding the characteristics of navigation lights, you can determine the appropriate course of action when approaching another vessel. The WelandSignalTM Solar 6nm is combined with three main parts, optical lens designed according to characteristics of leds, 4pcs of high efficiency mono-panels and newest lithium battery with 10+ years life. It is the brightest and lightest in weight of solar integrated navigation lights for boat on the recent market. From raw materials to finished product, we have made efforts in every details. It is solar integrated type to reach IP67 waterproof requirements, comply with UL 1104 and COLREG-72 standards. 112.5°red and green for port and starboard lighting, White for Masthead lighting at 135° and 360° all round. It is widely used for 100m or more length boats.
NOTE:
KEY FEATURES
ENERGY SAVING
UP-TO-DATE MATERIALS AND TECHNOLOGY
RELIABLE
SPECIFICATIONS
Port And Starboard Solar Led Ship Navigation Lights At Night
|
|||
Mechanical Specifications | Mechanical Specifications | ||
Peak Intensity
|
1500`2500cd adjustable |
Structure |
Solar Integrated Design Bird deterrent conjoined with lens for not easy to break |
Working Model
|
Steady On | Lens Material | Polycarbonate |
Protect Level
|
IP68 | Solar Panel | 4W * 4pcs mono |
Energy Manage System (EMS)
|
Intelligent Microprocessor | Storage Battery | 12.8V4AH LiFePO4 battery |
Temperature
|
-45℃~70℃ | Function Optional | Location |
Continuous Working Hours |
250hours | Mounting | 4 bolts M6 for Mounting |
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | Light Angel |
112.5°Red + 112.5°Green + 135°White=360° |
STANDARD
SIZE (mm)
