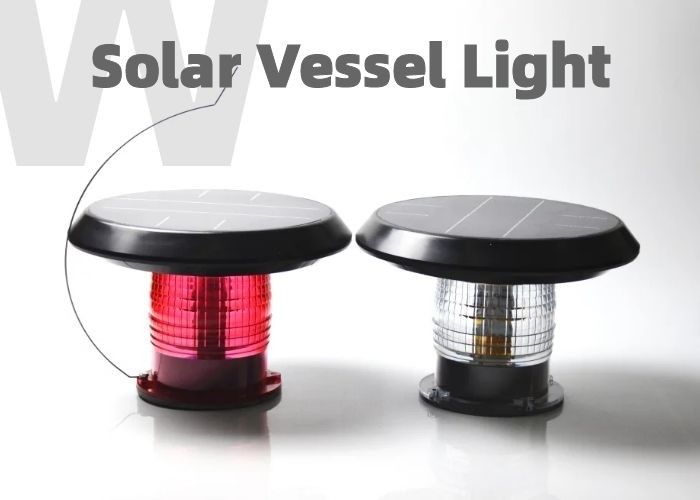

7nm Boat Navigation Lights Solar Powered Polycarbonate Anti UV

7nm Boat Navigation Lights Solar Powered Polycarbonate Anti UV

  • 7nm Boat Navigation Lights Solar Powered Polycarbonate Anti UV
7nm Boat Navigation Lights Solar Powered Polycarbonate Anti UV
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS, CE
Model Number: AFS702P
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$139-159
Packaging Details: Each has one small carton and 6pcs in one big carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright LED Color: Red, Green, Yellow, Blue, White
Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection Working Mode: Flashing, Steady On
Visibility: 7nm Peak Intensity: 200~1500cd
Waterproof: IP68 Solar Panel: 7.2W Mono
Battery: 7.2V16AH Li-ion Battery Mounting: 4pcs Bolts
Warranty: 3 Years OEM: Color, Flashing Frequency, Logo, Carton Design
Standard: UL 1104 & COLREG-72 Application: Vessel Navigation Light, Boat Navigation Lantern, Masthead Light, Stern Light, Side Light, All-round Light, 6nm Solar Boat Navigation Light
High Light:

7nm Boat Navigation Lights

,

Boat Navigation Lights Solar Powered

,

Solar Powered Navigation Lights For Boats

7nm Solar Powered Led Ship Navigation Lights is both versatile and cost-effective. This three-mile LED beacon is compact, self-contained and available in red, green, amber, white and black. The light source is formed from high intensity LEDs. Light output can be set according to visibility.

The beacon can be synchronised via the ITO sync GPS receiver and is designed to operate without servicing/maintenance for up to five years. Charge characteristics in dark conditions are superb. Due to its compactness, the beacon is especially suited for regions with low sun irradiation.



7nm Boat Navigation Lights Solar Powered Polycarbonate Anti UV 0

NOTE:

  • Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
  • Charge every 3 months when storing.



KEY FEATURES



ENERGY SAVING

  • The obstruction lights can operate with solar panels and batteries in order to offer low power consumption.
  • Will charge under nearly all weather conditions and up to 250 hours of operating capacity.
  • Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.



UP-TO-DATE MATERIALS AND TECHNOLOGY

  • We update main components every year with the rapid development of solar panel, batteries and LEDs.
  • We always keep ourselves up-to-date.



RELIABLE

  • Patented dome protects solar panel while improving efficiency, sheds snow.
  • Regulation automatically turns on at dusk and off at dawn.



SPECIFICATIONS





7nm Solar Powered Led Ship Navigation Lights



Mechanical Specifications Electrical Specifications



Peak Intensity



200-1500cd adjustable

Structure

Solar Integrated Design

Bird deterrent conjoined with lens for not easy to break



Working Model



Flahing/Steady On Lens Material Polycarbonate



Protect Level



IP68 Solar Panel 7.2W mono



Energy Manage System (EMS)



Intelligent Microprocessor Storage Battery 7.2V16AH li-ion battery



Temperature



-45℃~70℃ Function Optional Synchronization



Continuous Working Hours

250hours Mounting 4 bolts M6 for Mounting



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically Light Angle

112.5°Red + 112.5°Green + 135°White=360



SIZE (mm)

7nm Boat Navigation Lights Solar Powered Polycarbonate Anti UV 1



STANDARD

7nm Boat Navigation Lights Solar Powered Polycarbonate Anti UV 2

7nm Boat Navigation Lights Solar Powered Polycarbonate Anti UV 3

7nm Boat Navigation Lights Solar Powered Polycarbonate Anti UV 4





7nm Boat Navigation Lights Solar Powered Polycarbonate Anti UV 5
