| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS, CE |
| Model Number: | WLS101 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$99 |
| Packaging Details: | Each has one small carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Light Source: | Super Bright LED | Color: | Red, Green |
|---|---|---|---|
| Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection | Working Mode: | Steady On |
| Visibility: | 6-7KM | Waterproof: | IP68 |
| Warranty: | 5 Years | Application: | Approach Lighting System For Airport |
| High Light: | 7KM Visibility Airport Obstruction Light,Airport Obstruction Light IP68,IP68 Taxiway Edge Light |
||

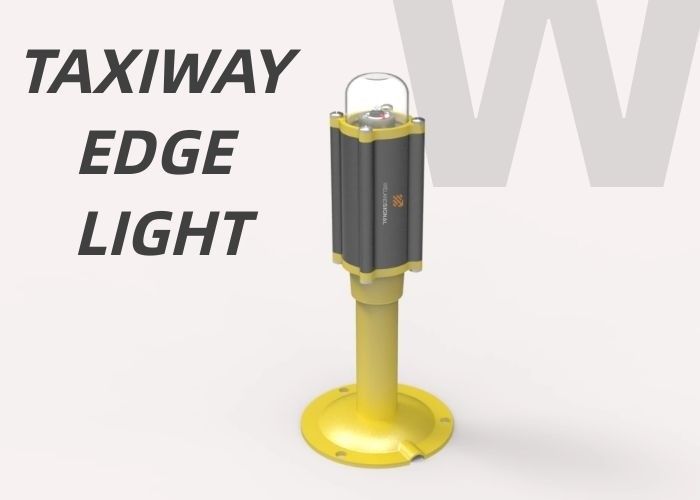

Taxiway Edge Light for Airport
Taxiway Edge Light for Airport are blue color airfield lights installed on taxiways, and aprons. Taxiway is part of airfield where aircraft is moving after landing to a runway. Taxiway lights are not so bright comparing to runway edge or threshold lights And, they are almost invisible from the air. The luminance must emit light within a range from horizontal to at least 75 above the horizontal at all necessary azimuth angles to provide guidance for drivers taxiing in
WLS-3O2T Solar taxiway Edge lights are ICAO-compliant solar LED elevated taxiway edge lights, designed for permanent use of non-precision runways in areas with no access to electricity and high photovoltaic potential.
In taxiway lights and other airport lighting products, we use special LED optics that comply with ICAO standards to produce the correct light output in terms of intensity and chromaticity.
ADVANTAGES
ICAO COMPLIANCE
ICAO, Annex 14th, Volume I, 7th Edition dated July 2016, clause 5.3.18.8 & Appendix 1, Figure A1-1b
SPECIFICATIONS
|
Taxiway Edge Light for Airport
|
|||
| Mechanical Specifications | Electrical Specifications | ||
|
Visibility
|
3-4nm | Lens Optical | Optical lens design for leds |
|
Working Model
|
Flahing/Steady On | Lens Material | Polycarbonate |
|
Protect Level
|
IP68 | Solar Panel | mono on the top |
|
Energy Manage System (EMS)
|
Intelligent Microprocessor | Storage Battery | LiFePO4 battery on the back of solar panel |
|
Temperature
|
-45℃~70℃ | Function Optional | Synchronization |
| Voltage | 50/60 Hz;12VDC;24VDC;48VDC | Mounting | Botls |
|
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | OEM Service |
Color: Red, Green, Yellow, Blue, White Flashing frequency |
