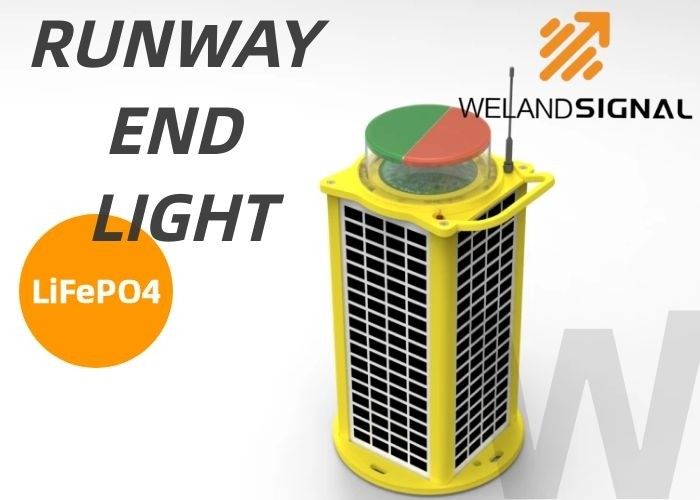

WLS-203H Runway End Airport Obstruction Light 7KM-10KM Visibility

WLS-203H Runway End Airport Obstruction Light 7KM-10KM Visibility

  • WLS-203H Runway End Airport Obstruction Light 7KM-10KM Visibility
WLS-203H Runway End Airport Obstruction Light 7KM-10KM Visibility
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS, CE
Model Number: WLS-203H
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$399
Packaging Details: Each has one small carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright LED Color: Red, Green
Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection Working Mode: Steady On,flashing
Visibility: 7-10KM Peak Intensity: 2500cd
Waterproof: IP68 Solar Panel: 7W * 4pcs Mono
Battery: 12.8V10AH LiFePO4 Battery Mounting: 4pcs Bolts
Warranty: 3 Years Application: AIRPORT SOLAR RUNWAY END LIGHT
High Light:

Runway End Airport Obstruction Light

,

Airport Obstruction Light 7KM visibility

,

10KM Visibility Runway End Light

WLS-203H RUNWAY END LIGHT FOR THE AIRPORT


WLS-203H RUNWAY END LIGHT FOR THE AIRPORT identifies the end of a runway. It means that behind these lights, there is no place to continue aircraft movement. Runway end lights are unidirectional red color aviation lights. Usually, runway end light is a bidirectional green/red airfield light. From one direction it is green, from the other direction it is red. The light should be steady on.

Runway end light must be installed on a straight line perpendicular to the axis of the runway and as close to the end of the runway as possible, and in any case shall not be installed at a distance greater than 3 m beyond the end of the runway..

WLS-203H Runway End Airport Obstruction Light 7KM-10KM Visibility 0

ADVANTAGES


  • Designed for portable or fixed applications
  • Advanced LED optics with no high voltage cables and bulb changes
  • Comply with FAA,ICAO standard
  • Easy to install, configure and maintain
  • Operates 365 Days On Solar Energy
  • Solar, AC, DC options

INSTALLATION & MAINTENANCE


No cable, no grid is required to install WelandSignalTM solar approach lighting. The installation of a complete airfield lighting system takes only one month or less. Maintenance and installation can be handled by local people. We provide manual guider and online video tutorials and troubleshooting materials for airport engineers or projectors.

WelandSignalTM makes maintenance easy. Engineers check the working states of all lights at the airport through a controller. Light’s voltage, color, battery failure are figured out clearly.



WLS-203H Runway End Airport Obstruction Light 7KM-10KM Visibility 1







SPECIFICATIONS





WLS-203 RUNWAY END LIGHT FOR THE AIRPORT



Mechanical Specifications Mechanical Specifications



Peak Intensity



2500cd adjustable

Structure

Solar Integrated Design

Bird deterrent conjoined with lens for not easy to break



Working Model



Steady On Lens Material Polycarbonate



Protect Level



IP68 Solar Panel 7W * 4pcs mono



Energy Manage System (EMS)



Intelligent Microprocessor Storage Battery 12.8V10AH LiFePO4 battery



Temperature



-45℃~70℃ Function Optional Synchronization



Continuous Working Hours

250hours Mounting 4 bolts M6 for Mounting



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically

Light Output

Red180°+Green 180°



SIZE (mm)



WLS-203H Runway End Airport Obstruction Light 7KM-10KM Visibility 2



PROJECT STUDIO

WLS-203H Runway End Airport Obstruction Light 7KM-10KM Visibility 3

Red180°+Green 180°
