Solar Runway End Airport Solar Light

Solar Runway End Airport Solar Light

  • Solar Runway End Airport Solar Light
Solar Runway End Airport Solar Light
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS, CE
Model Number: WLS203
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$199
Packaging Details: Each has one small carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright LED Color: Red, Green
Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection Working Mode: Steady On
Visibility: 6-7KM Peak Intensity: 400-600cd
Waterproof: IP68 Solar Panel: 3W * 4pcs Mono
Battery: 12.8V4AH LiFePO4 Battery Mounting: 4pcs Bolts
Warranty: 3 Years Standard: FAA,ICAO
High Light:

Solar Runway End Airport Obstruction Light


FAA ICAO Airport Obstruction Light


FAA ICAO Airport Solar Light

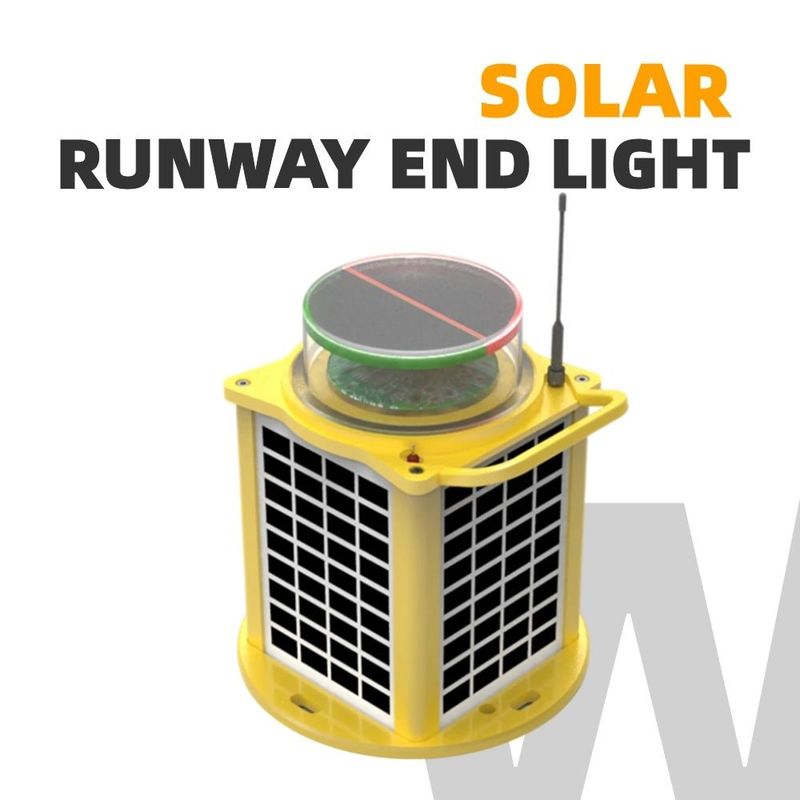

WLS-203 AIRPORT SOLAR RUNWAY END LIGHT identifies the end of a runway. It means that behind these lights, there is no place to continue aircraft movement. Runway end lights are unidirectional red color aviation lights. Usually, runway end light is a bidirectional green/red airfield light. From one direction it is green, from the other direction it is red. The light should be steady on.

Runway end light must be installed on a straight line perpendicular to the axis of the runway and as close to the end of the runway as possible, and in any case shall not be installed at a distance greater than 3 m beyond the end of the runway.

Solar Runway End Airport Solar Light 0

Solar Runway End Airport Solar Light 1





  • The AIRPORT SOLAR RUNWAY END LIGHT can operate with solar panels and batteries in order to offer low power consumption.
  • Will charge under nearly all weather conditions and up to 250 hours of operating capacity.
  • Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.



  • We update main components every year with the rapid development of solar panel, batteries and LEDs.
  • We always keep ourselves up-to-date.



  • Patented dome protects solar panel while improving efficiency, sheds snow.
  • Regulation automatically turns on at dusk and off at dawn.







Mechanical Specifications Mechanical Specifications


Peak Intensity


200-1500cd adjustable


Solar Integrated Design

Bird deterrent conjoined with lens for not easy to break


Working Model


Steady On Lens Material Polycarbonate


Protect Level


IP68 Solar Panel 3W * 4pcs mono


Energy Manage System (EMS)


Intelligent Microprocessor Storage Battery 12.8V4AH LiFePO4 battery




-45℃~70℃ Function Optional Synchronization


Continuous Working Hours

250hours Mounting 4 bolts M6 for Mounting


Automatic Light Control (ALC)


Turn on at night and off at daytime automatically

Light output

Red180°+Green 180°


SIZE (mm)


Solar Runway End Airport Solar Light 2
