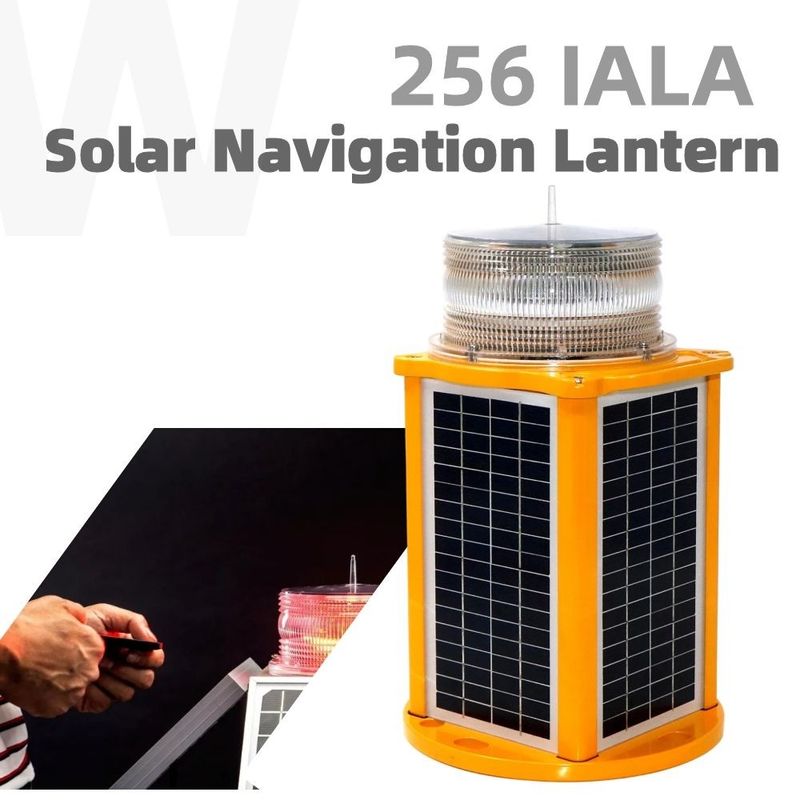

12-13nm IALA Navigation Lights IMO Polycarbonate Solar Powered

12-13nm IALA Navigation Lights IMO Polycarbonate Solar Powered

13nm IALA Navigation Lights

IALA Navigation Lights IMO

13nm solar led navigation lights

Place of Origin:

SHAANXI, CHINA

Brand Name:

WelandSignal

Certification:

ROHS, CE

Model Number:

NFS1500/256

Contact Us
Request A Quote
Product Details
Light Source:
Super Bright LED
Color:
Red, Green, Yellow, Blue, White
Material:
Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Working Mode:
256 IALA Flashing Model
Visibility:
12-13nm
Peak Intensity:
400-600cd
Waterproof:
IP68
Solar Panel:
7W * 4pcs Mono
Battery:
12.8V20AH LiFePO4 Battery
Mounting:
4pcs Bolts
Warranty:
3 Years
OEM:
Color, Flashing Frequency, Logo, Carton Design
Standard:
IMO
Application:
Crane Marking Light, Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
Highlight:

13nm IALA Navigation Lights

,

IALA Navigation Lights IMO

,

13nm solar led navigation lights

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
USD$460~480
Packaging Details
Each has one small carton
Delivery Time
3-7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
20000pcs/month
Product Description

256 IALA LED Solar Navigation Light with wireless controller is a popular solar-powered LED Light in the field of marine aid to navigation around the world. Because of its self-contained, reliability and durability, it has also become a perfect model for all kinds of warning applications. It installs in minutes and requires no maintenance or servicing for up to five years. It complies with IALA-AISM’s requirements.





SPECIFICATIONS





256 IALA LED Solar Navigation Light with wireless controller



Mechanical Specifications Mechanical Specifications



Peak Intensity



200-2500cd adjustable

Structure

Solar Integrated Design

Bird deterrent conjoined with lens for not easy to break



Working Model



256IALA flashing code Lens Material Polycarbonate



Protect Level



IP68 Solar Panel 7W * 4pcs mono



Energy Manage System (EMS)



Intelligent Microprocessor Storage Battery 12.8V20AH LiFePO4 battery



Temperature



-45℃~70℃ Function Optional Synchronization/Location



Continuous Working Hours

250hours Mounting 4 bolts M6 for Mounting



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically



12-13nm IALA Navigation Lights IMO Polycarbonate Solar Powered 0

NOTE:

  • Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
  • Charge every 3 months when storing.



KEY FEATURES



ENERGY SAVING

  • The 256 IALA LED Solar Navigation Light can operate with solar panels and batteries in order to offer low power consumption.
  • Will charge under nearly all weather conditions and up to 250 hours of operating capacity.
  • Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.



UP-TO-DATE MATERIALS AND TECHNOLOGY

  • We update main components every year with the rapid development of solar panel, batteries and LEDs.
  • We always keep ourselves up-to-date.



RELIABLE

  • Patented dome protects solar panel while improving efficiency, sheds snow.
  • Regulation automatically turns on at dusk and off at dawn.





Symbols

FL Flash followed by number E.g. FL 1 S, one flash every second
F Fixed
Q Quick flash
VQ Very quick flash
OC Occulting; greater period on than off
ISO Isophase; equal period on and off
LFL Long flash long
MO Morse code () contains letter

For example, VQ (6) + LFL 10 S means 6 very quick flashes followed by a long flash, during a10-second interval

The amount of power your lantern draws through the night depends on the duty cycle, i.e. the amount of time on as

a proportion to the timing cycle. For example, 0.5 seconds on and 4.5 seconds off equals a 10% duty cycle.

It is best to operate at the lowest duty cycle appropriate to the actual needs of the application.

Recommended Rhythm for Flashing Light-IALA Regions A and B

MARK DESCRIPTION RHYTHM
Port Hand & Starboard Marks Any other than composite group flashing (2+1)
Preferred Chanel Starboard Composite Group Flashing(2+1)
Preferred Channel Port Composite Group Flashing(2+1)
North Cardinal Mark Very quick or quick
East Cardinal Mark Very quick (3) every 5 seconds or quick (3) every 10 seconds
South Cardinal Mark Very quick (6) + long flash every 10 seconds or quick (6) + long flash every 15 seconds
West Cardinal Mark Very quick (9) every 10 seconds or quick (9) every 15 seconds
Isolated Danger Mark Group flashing(2)
Safe Water Mark Isophase, occulting, one long flash every 10 seconds or Morse Code ‘A’
Special Marks Any other than those described for Cardinal, Isolated Danger or Safe Water Marks

12-13nm IALA Navigation Lights IMO Polycarbonate Solar Powered 1
